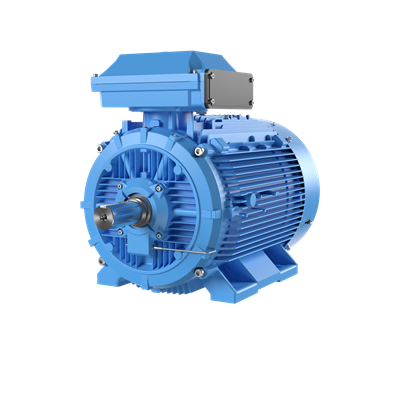

The permanent magnet motor series extends the effective rated speed range of the industry workhorse to 100 – 850 rpm, simplifying the drive system without the need for a reduction gear. Designed for frequency converters, permanent magnet motors provide high-precision speed control even without a speed sensor, as synchronous motors do not have rotor slip.

• Torque range 1000 to 50 000 Nm
• Structural design based on standard induction motors
• Rotor magnetization by permanent magnets
• Fully enclosed IP 55 protection class
• Air or liquid cooling

• Traditional AC motor, inverter and gearbox combination
• Traditional low-speed AC motor, usually 10-16 poles, or lower speed motor and inverter combination
• Variable frequency DC drive system and gearbox combination

• Output power

• Frame size IEC 280 - 560
• Frame material cast iron/welded steel
• Voltage full voltage
• Protection level IP 55
• Cooling method air cooling or liquid cooling
