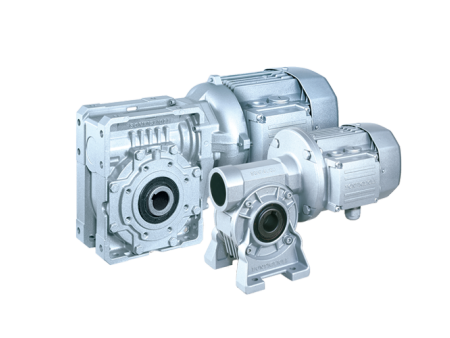

Worm Gear Reducer VF/W Series
Torque range
13 ... 7100 Nm
Mechanical rated power (n1 = 1400 rpm)
0.04 ... 75 kW
Transmission ratio
7 ... 10000
Output type
Keyed hollow shaft
Plug-in solid output shaft
Optional torque limiter
Input type
VF and W series: IEC standard motor interface
VF and W series: solid input shaft.
Applicable AC motors
VF and W series: IEC standard motors and brake motors - BN series/BE series W series: integrated motors and brake motors - M series/ME series Single and dual speed motors
Main braking characteristics
DC and AC power supply Fast braking/release possible through electronically controlled SB, NBR, SBR (optional) type AC/DC rectifiers
Main motor options
Thermistors and thermostats Separately powered forced ventilation system Line drivers and push-pull incremental encoders
Torque
| Model | Torque (Nm) |
| VF 27 | 13 |
| VF 30 | 24 |
| VF 44 | 55 |
| VF 49 | 88 |
| W 63 | 190 |
| W 75 | 320 |
| W 86 | 440 |
| W 110 | 830 |
| VF 130 | 1.5 |
| VF 185 | 3.6 |
| VF 210 | 5 |
| VF 250 | 7.1 |
