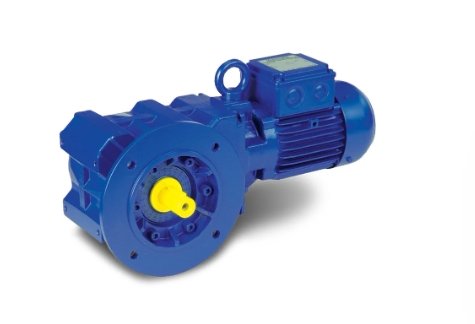

Our reliable BK Series geared motors set new standards for reliability, efficiency and economy with unmatched standard features such as the smallest hollow shaft. The inverter-friendly design ensures easy integration today and for the future. BK geared motors have flexible mounting options including shaft, base, face and flange solutions. The motor terminal box can be mounted in alternate positions rotated 90° around the motor frame, allowing for unmatched integration possibilities.

Complying with North American and international standards such as NEMA, IEC, CSA and CE, the BK Series geared motors are globally approved, providing a truly comprehensive solution for our global customers.

Excellent protection with IP65 rating (according to IEC 529) makes the BK Series dust and water resistant, allowing it to be used outdoors or in wet and dusty environments without the need for an additional housing. The output shaft of the unit provides full rated output.

Torque 80 ... 18.500 Nm

Output speed 0.2 ... 280 min-1

Various mounting options

Completely enclosed and sealed against dust and water jets

First oil change after 15,000 hours of use

Low-noise drive

Power supply 110 ... 690 V, 50/60 Hz

Enclosure IP65 (standard), IP66 (optional)

Connection standard with CAGE CLAMP® technology

Use plug connectors.

Integrated inverter up to 7.5 kW.

CE marking

CSA, UL, ATEX, GOST, CCC, ISO9001, ISO14001, OHSAS18001

Motors in accordance with EN 60034

Corrosion categories in accordance with DIN ISO 12944-5

C1, C2, C3, C4, C5-I, C5-M
