Bauer

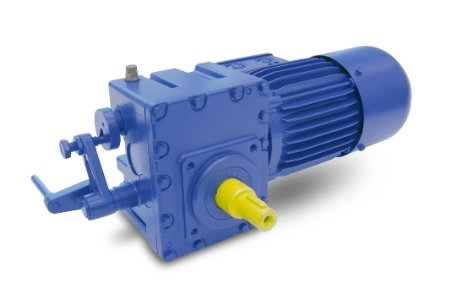

BM Series Monorail Gear Motor


BM Series Monorail Gear Motor



  • In the material handling industry, Bauer geared motors have been used for over 20 years in overhead conveyor drive monorails. BM geared motors are the ideal solution for floor conveyors. The clutch lever is always located on the "L" side of the geared motor, i.e. the side opposite the motor. This allows the geared motor to have an output shaft on both sides and can also be used as a drive for floor conveyors.
  • Reliable operation even in harsh environments

The drive is equipped with IP65 protection as standard. This is an important advantage for operation in dusty environments.

  • Low-noise operation

Compared to three-ratio motors with the same ratio, two-ratio geared motors emit less noise. The first gear, which is mainly responsible for the noise, has a smaller diameter than the three-ratio version.

  • Low operating costs

The BM09 type geared motor, which can carry up to approx. 2000 kg, is equipped with a worm gear for the first ratio and a spur gear for the second ratio. The specially developed low-ratio worm gear offers high efficiency, similar to a bevel gear drive.


Features


  • Rated power up to 0.55 kW.
  • Torque 90 Nm minimum
  • Radial force up to 6,500 N
  • Various mounting options
  • Completely enclosed and sealed to prevent dust and water jets
  • The first oil change is required after 15,000 hours of use
  • Low-noise transmission
  • Power supply unit 110 ... 690 V, 50/60 Hz
  • Enclosure IP65 (standard), IP66 (optional)
  • Connection standard uses CAGE CLAMP® technology
  • Use plug connector.
  • CE marking
  • CSA, UL, ATEX, GOST, CCC, ISO9001, ISO14001, OHSAS18001
  • Motors comply with EN 60034
  • Corrosion category in accordance with DIN ISO 12944-5
  • C1, C2, C3, C4, C5-I, C5-M
