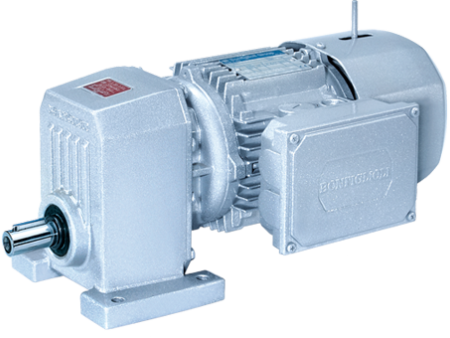

Gearbox S series
21 ... 200 Nm
0.12 ... 11.6 kW
1.4 ... 13.1
Base and flange mounting
IEC standard motor interface Solid input shaft
Integrated motors and brake motors - M series / ME series IEC standard motors and brake motors - BN series / BE series Single and two-speed motors
DC and AC supply Fast braking / release possible via electronically controlled SB, NBR, SBR (optional) type AC/DC rectifiers
Thermistors and thermostats Separately powered forced ventilation system Line drivers and push-pull incremental encoders
|
Models |
Torque (Nm) |
|
S 10 |
21 |
|
S 20 |
37 |
|
S 30 |
70 |
|
S 40 |
125 |
|
S 50 |
200 |
