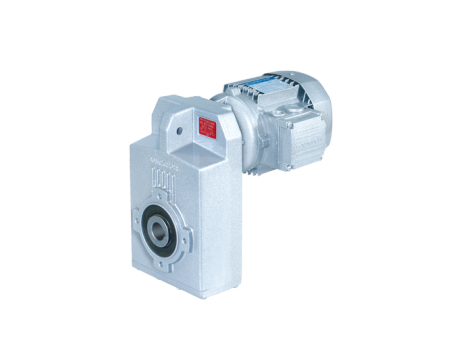

Gearbox F series
Torque range
140 ... 14000 Nm
140 ... 14000 Nm
Mechanical rated power (n1 = 1400 rpm)
0.17 ... 125 kW
Transmission ratio
6.4 ... 2099
Output type
Keyed hollow shaft - two bore options for each size
Keyless shrink disk mounting
Plug-in solid output shaft (optional)
Input type
IEC standard motor interface
Solid input shaft
Applicable AC motors
Integrated motors and brake motors - M series / ME series
IEC standard motors and brake motors - BN series / BE series
Single-speed and two-speed motors
Main braking characteristics
DC and AC power supply Fast braking/release possible via electronically controlled SB, NBR, SBR (optional) type AC/DC rectifier
Main motor options
Thermistors and thermostats Separately powered forced ventilation system Line drivers and push-pull incremental encoders
|
Model |
Torque (Nm) |
|
F 10 |
140 |
|
F 20 |
250 |
|
F 25 |
400 |
|
F 31 |
600 |
|
F 41 |
1.100 |
|
F 51 |
1.800 |
|
F 60 |
2.900 |
