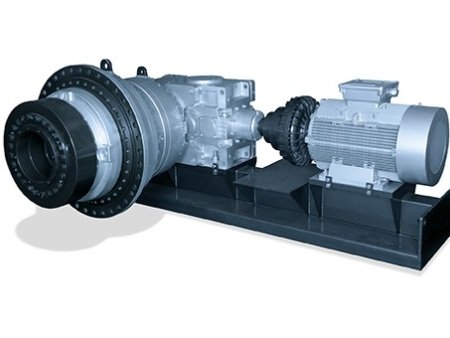

Planetary Gear Motor 3-H Series

• Product range

Application-appropriate combinations available with:

• Transmission ratios from 1:100 to 1:1000

• Rated power up to 980 kW

• Reference torque up to 1200 kNm

Complete and customizable power transmission solutions for special applications, including:

• Torque arm

• Base plate

• Hydraulic coupling

• Shoe brake

• Additional accessories (painting, special seals, motor flange with integrated fan, etc.)

Solid shaft with keyway

Solid shaft with foot

Solid shaft with keyway and foot

Hollow shaft with shrink disk

Hollow shaft with keyway

Flange with motor bell coupling and intermediate flexible coupling (coupling between the cylindrical shaft of the motor and gearbox).

Base, flange and shaft mounting

Horizontal input shaft

Longitudinal input shaft

Depending on the application requirements, the output shaft can be mounted on the left or right side of the 3/HDO combination gearbox.

Auxiliary heating equipment

Forced lubrication system

Backstop
