Brevini

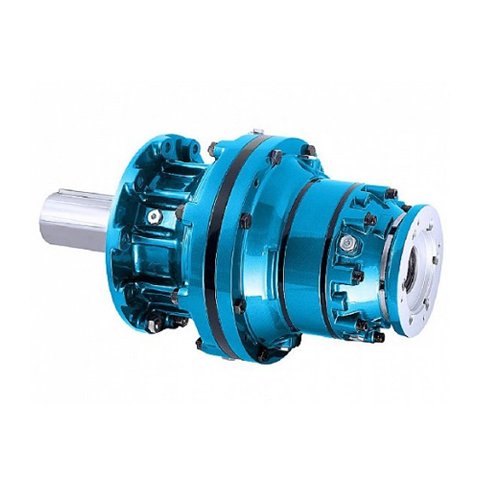

Industrial Planetary Gearbox

Industrial Series

This is a complete range of modular design planetary gearboxes that combine high performance, low cost and compact size. The commercial success of DANA planetary gearboxes over the years is a testament to their excellent quality and reliability, simple installation and limited maintenance.
DANAs industrial planetary gearboxes are available in a variety of sizes to ensure optimal service life and quiet operation in a wide range of applications.

Parameter information

Torque [Nm]	Maximum torque [Nm]	Ratio	Version
200 - 29.400	1.000 - 35.000	3,5 - 3.000 and above	Inline - Right angle

Feature

Flange, shaft and foot mounting options
Cylindrical keyed output shaft: male and female for flange mounting, female for shaft mounting and male for foot mounting
Splined output shaft, male and female for flange mounting
Cylindrical female output shaft with shrink disc for shaft mounting
Modular design with reduction stages from 1 to 6 (2-6 with bevel gears)
Various adapters for hydraulic and electric motors
Solid input shaft
Spring applied hydraulic release (SAHR) brake
Splined male output shaft accessories
Viton seals for high temperature environments
Special paint cycle according to EN ISO 12944
