KTR

ROFLEX Claw Coupling

ROFLEX Claw Coupling


  • The torsionally flexible and fail-safe ROFLEX Claw Couplings are distinguished by their compact design and short distance between shaft ends (DBSE).

  • The short shaft distance makes the power unit even more space-saving.

  • Compared to the well-known DIN 740 standard couplings, the new ROFLEX SH couplings feature a combination of split cam segments (ROFLEX SH) manufactured by a cracking process.

  • In todays era of usability, easy maintenance, compact design and operational safety, the compactness and easy maintenance are key advantages that every user appreciates.

  • It goes without saying that ROFLEX reliably compensates for any type of shaft displacement (axial, radial, angular) while damping and reducing torsional vibrations.

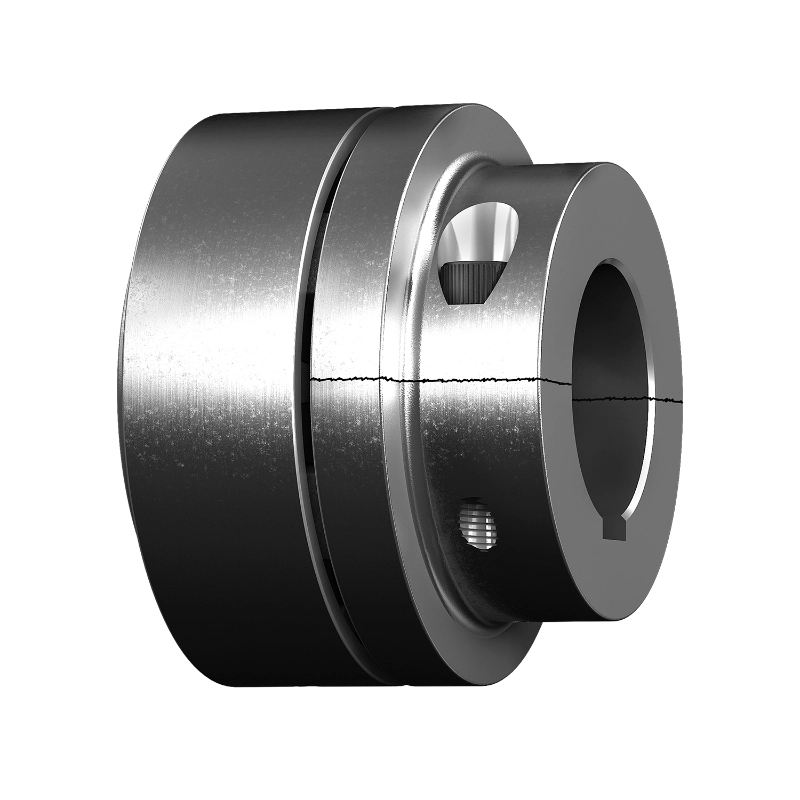

ROFLEX® SH


  • 0 - 5,000 Nm / Torsionally flexible, fail-safe coupling
The ROFLEX SH Split is a torsionally flexible, fail-safe coupling, a short three-part coupling for power transmission with torsional vibration damping.
  • ROFLEX SH Split is an elastic coupling with a split/split hub (SH SPLIT). This design is also known as a half-shell coupling, clamping coupling, split hub coupling or split clamping hub elastic coupling.
  • The coupling can transmit torques up to 1,800 Nm.
  • Features
Three-part coupling for power transmission with torsional vibration damping
Axial insertion, easy assembly
Easy assembly/disassembly via four screws
Compact: small wheelbase
Elastomer spider can be replaced during assembly

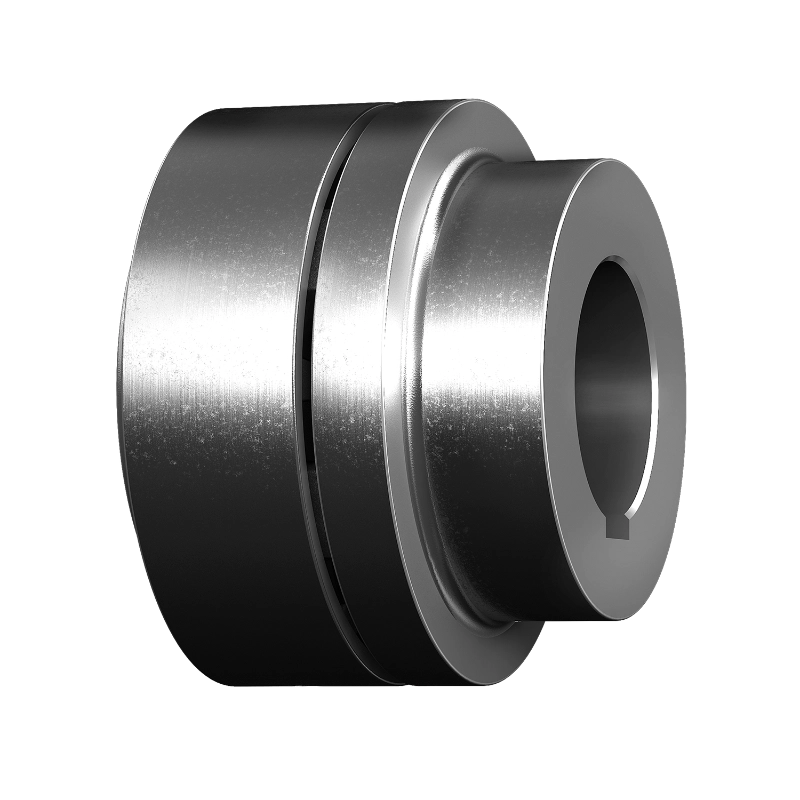

ROFLEX® N


  • 0 - 5,000 Nm / Fail-safe coupling
ROFLEX N is a torsionally flexible, fail-safe coupling according to DIN 740 and is a short two-part coupling for power transmission with torsional vibration damping. The compact design of ROFLEX N allows for short shaft end distances (DBSE).
  • The identically designed coupling halves made of cast iron make the ROFLEX N standard particularly economical. The coupling is simply mounted by pushing the hub onto the shaft and securing it axially by means of set screws.
  • ROFLEX N reliably transmits torques of up to 5,000 Nm.
  • Features
Two-part coupling (pump coupling) for power transmission with torsional vibration damping
Low-cost standard version
Axial insertion, easy assembly
Maintenance-free
Compact: small wheelbase
