GEARex Gear Coupling

GEARex all-steel gear couplings, with grease lubrication and O-ring sealing, comply with international standards. These all-steel gear couplings are suitable for positive torque transmission as flexible shaft connections, ensuring compensation of axial, radial and angular shaft displacements.

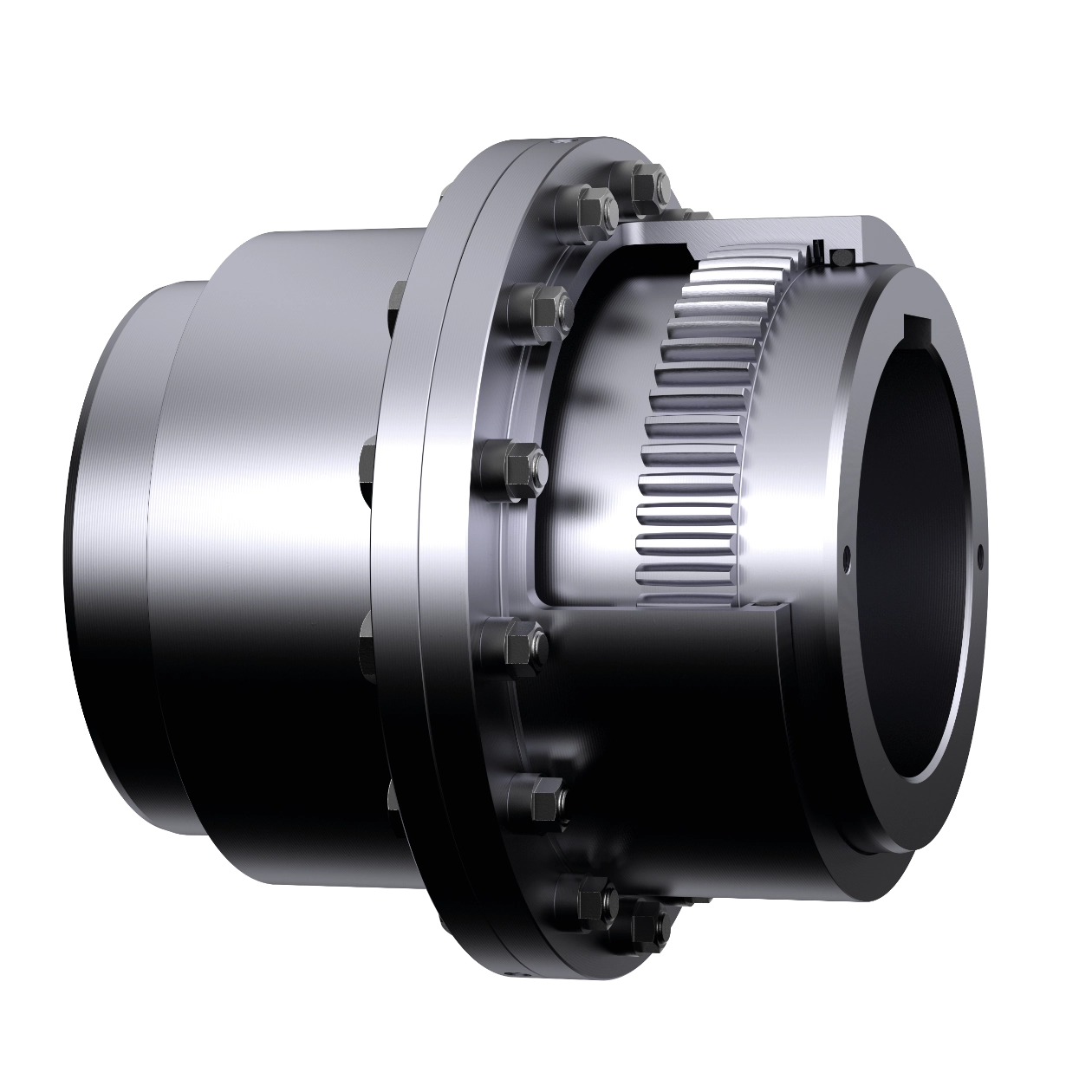

GEARex® FA

0 - 135,000 Nm / all-steel gear couplings

Due to the position of the hub, the GEARex FA all-steel gear couplings have very short wheelbase dimensions.

The hub of the gear coupling can be fixed by thread, for set screws or with an interference fit. The adjustment sleeve and the materials of the hub allow the transmission of high torques.
Features

Double universal all-steel gear coupling
High power density
High torques up to 135,000 Nm in a small size
Compact: small wheelbase dimensions
Both hubs turned internally

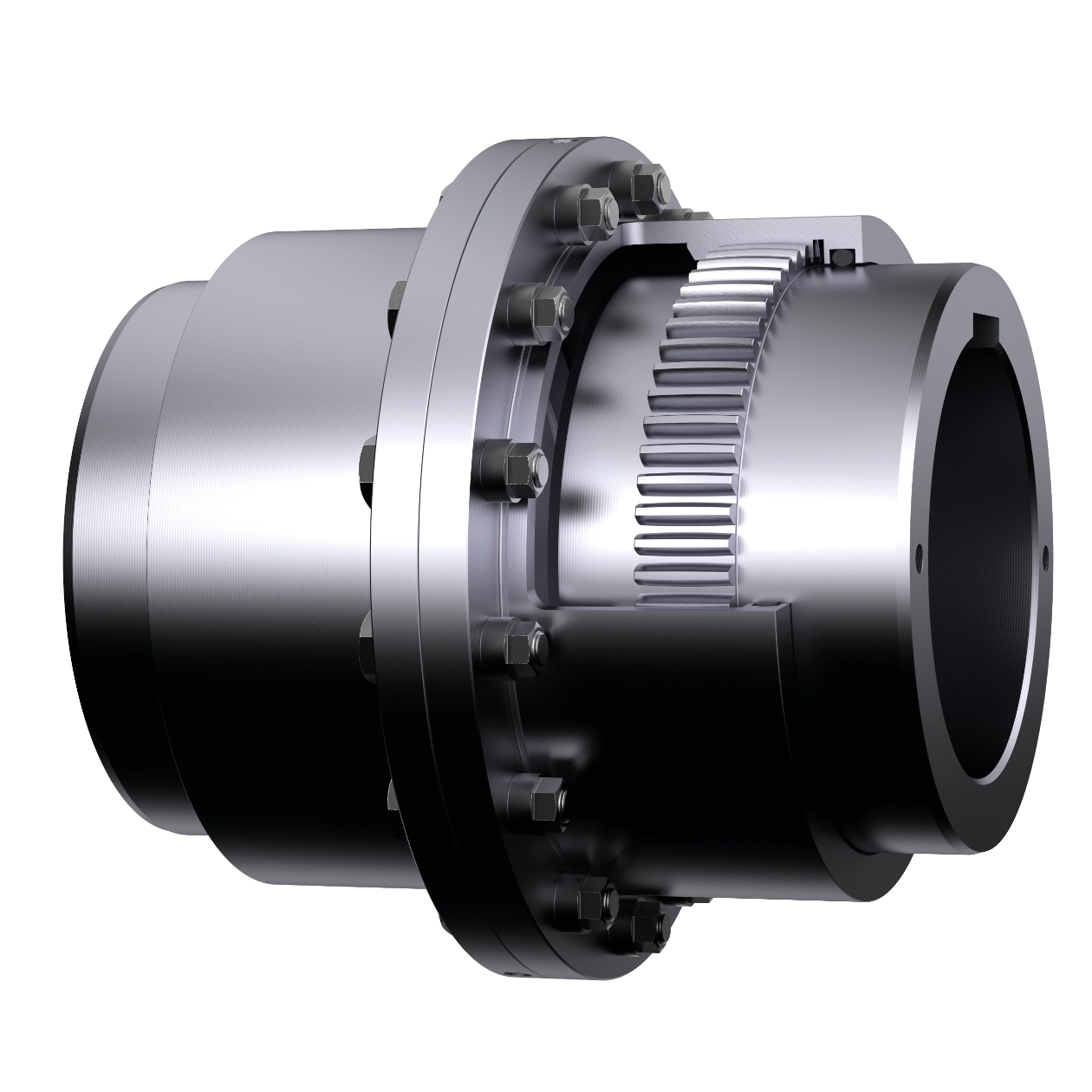

GEARex® FB

0 - 135,000 Nm / All-steel gear coupling

The GEARex-FB all-steel gear coupling has medium wheelbase dimensions and its hubs are turned externally.

The hubs of this gear coupling can be fixed by thread, for set screws, interference fit or end plates. The adjustment sleeve and the material of the hubs allow the transmission of high torques.
Features

Double universal all-steel gear coupling
High power density
High torques up to 135,000 Nm in a small size
Compact: small wheelbase dimensions
Both hubs turned externally

GEARex® FAB

0 - 135,000 Nm / All-steel gear coupling

The all-steel gear coupling GEARex-FAB has short wheelbase dimensions and its hubs are installed in different positions.

The hub of this gear coupling can be fixed by threading, for set screws, interference fit or end plates. The materials of the adjustment sleeve and hub allow the transmission of high torques.
Features

Double universal all-steel gear coupling
High power density
High torque up to 135,000 Nm in small dimensions
Each hub is turned externally and internally
Length dimensions between FA and FB
