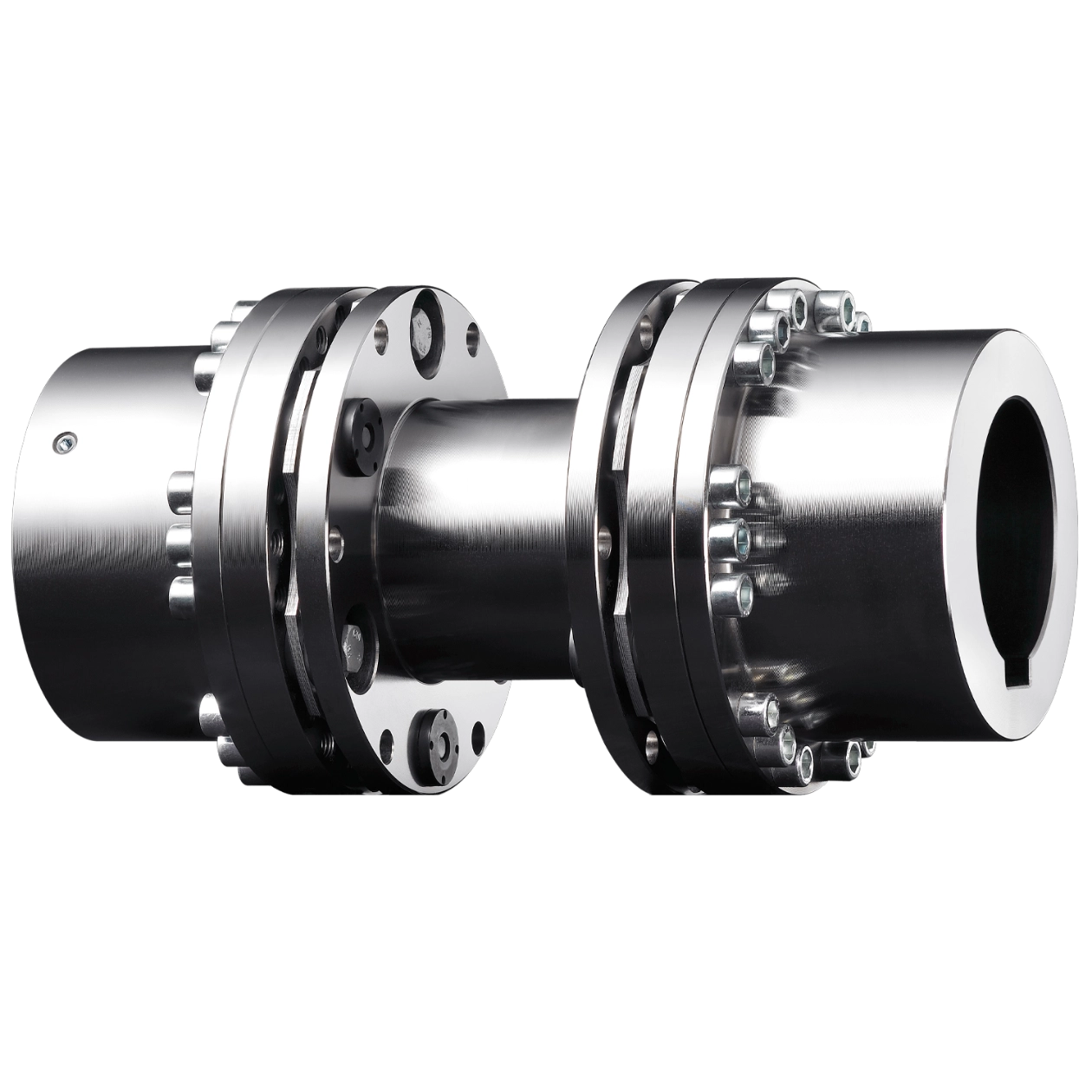

RIGIFLEX-N Disk Coupling

RIGIFLEX®-N lamellar couplings are used wherever reliable and backlash-free torque transmission is required while allowing shaft displacement.
The lamellars are designed as layered, waisted lamellar packs. They are connected completely backlash-free to the hub and flange via positively locking set screws.

RIGIFLEX®-N A

0 - 280,000 Nm / Disk couplings

Double universal, torsionally rigid and backlash-free couplings for medium and high-speed drives, especially pumps and compressors.

Features

According to API 610 series / API 671 optional
Suitable for drives with peripheral speeds up to 100 m
All-steel coupling / Leaf coupling
Spacer set pre-installed by the manufacturer
Torsional rigidity

RIGIFLEX®-N A-H

0 - 2,400 Nm / Leaf coupling

Leaf coupling in half-shell design for quick mounting and dismounting, in accordance with API 610, API 671 optional.

Features

All-steel coupling / Leaf coupling
Easy radial mounting/dismounting due to half-shell hub design
Leaf set pre-installed by the manufacturer
Coupling fully balanced as a whole
Type optimized for cost and performance
