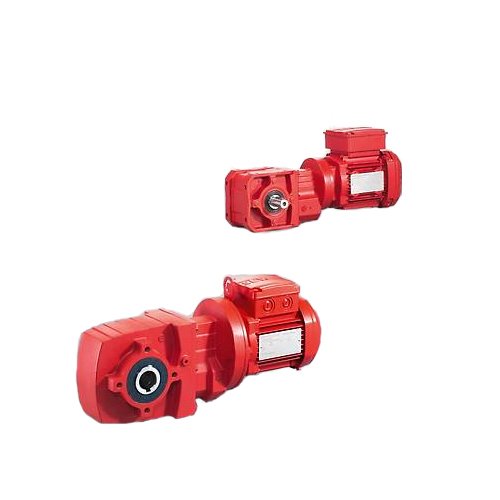

SPIROPLAN® right-angle Gearmotors W

W series right-angle Gearmotors

Do you have high speed requirements for your material handling system, but little space is available for the drive and it is lightweight? You can use the W series right-angle gear units from SEW.
Right-angle gear units: maintenance-free transmission
The W series helical gear units are characterized by a wear-free tooth profile. They provide stable power transmission and stable speed regulation of conveyor systems.

W series right-angle gear units are available with an output torque of 180 Nm and a power range of 0.09 kW to 3 kW.

The steel-on-steel material combination and the special tooth meshing allow the gear units to be compactly designed, thus saving installation space.

Operation: with wear-free SPIROPLAN® transmission.
Lightweight and compact: aluminum housing and specially designed transmission.
The devil is in the details
The gear units are lightweight with aluminum housings. And thanks to special gears and lifetime lubrication, they require little maintenance and can operate reliably over the long term. No compromises: SPIROPLAN® gear units are suitable for most drive tasks, thanks to their wide range of design options.

Using the modular concept, W series gear units can be combined with AC motors to form W..DR..SPIROPLAN® right-angle gear units and with servo motors to form W..CMP SPIROPLAN® right-angle servo gear units. You can also select the AC motor or servo motor that meets your requirements individually.

Features

1. Wear-free SPIROPLAN® transmission (steel-on-steel material combination) and special tooth meshing
2. Optimized mechanical efficiency and reduced energy consumption
3. Anti-vibration operation/operation
4. Small gear ratio for high motor power and high speed
5. Lightweight aluminum housing

Installation

The mounting holes on the base and face are spaced the same, so a variety of mounting positions are possible
W10, W20, W30 size reducer installation: The lubricant filling amount is independent of the mounting position of these products

Technical Data

W series/ Specification 10, 20, 30, 37, 47

parameter	unit	10, 20, 30, 37, 47	W10	W20	W30	W37	W47
Speed Ratio	i	3.20 – 75.00	6.75 – 75.00	6.57 – 75.00	6.57 – 75.00	3.20 – 69.05	3.27 – 74.98
Output torque	Nm	25 – 180	25	40	70	110	180
Motor power range (installed via AM motor adapter)	kW	0.09 – 3.0	0.09 – 0.12	0.12 – 0.37	0.12 – 0.75	0.12 – 1.5	0.12 – 3.0

Available variants

1. Foot or flange installation
2. B5 or B14 flange installation
3. Solid shaft or hollow shaft
4. Adapter installation

Asynchronous motor installation

1. For W10, W20, W30 specification reducers: Direct motor installation
2. For W37, W47 specification reducers: Motor flange installation

Available options

1. MOVIMOT® variant, e.g. as right-angle gear unit with integrated frequency converter
2. MOVI-SWITCH® variant, e.g. as right-angle gear unit with integrated switching and protection functions

Application

1. Small fast conveyor belts in internal logistics
2. Roller conveyors
3. Belt conveyors
4. Chip conveyors
5. Sizes W10, W20, W30: Suitable for noise-sensitive working environments
6. Sizes W37, W47: Shaft-mounted design for hygiene-critical applications in the food and beverage industry
